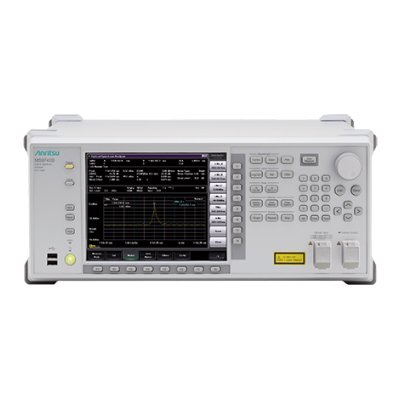

MS9740B : Optical Spectrum Analyzer (OSA)
Featuring a wide dynamic range, high resolution, and fast sweep speeds over a wavelength range of 600 nm to 1750 nm.
Optical Spectrum Analyzer MS9740B Halves Evaluation Times
Ramp Up Production Line Efficiency for Optical Active Devices for 5G Mobile and Cloud Services
Product Overview of Optical Spectrum Analyzer MS9740B
The benchtop Optical Spectrum Analyzer MS9740B features wide dynamic range, high resolution, and fast sweep speeds over a wavelength range of 600 nm to 1750 nm. It supports multimode fiber input and is ideal for manufacturing and evaluating 850-nm band VCSEL modules.
As well as keeping the same functions and performance as its predecessor, the MS9740B slashes measurement processing times by up to half*1 while overcoming problems of decreased measurement sensitivity caused by increased processing speed.
Moreover, it retains optical active device (LD-Module, DF-LD, FP-LD, LED, PMD, WDM, Opt Amp, and WDM Filter) measurement menu screens for evaluating devices. It supports all-at-once measurements of key evaluation items, such as optical center wavelength, level, OSNR, spectrum width, etc., and displays these results at one screen.
*1: Rx bandwidth setting: 1 kHz or 200 Hz
GPIB Interface, SMSR Measurement Time (DFB Light Source), VBW: 1 kHz_Fast (MS9740B)/1 kHz(MS9740A) Setting, 0.1-nm Resolution, 30-nm Sweep Width, 1001 Sample Points
